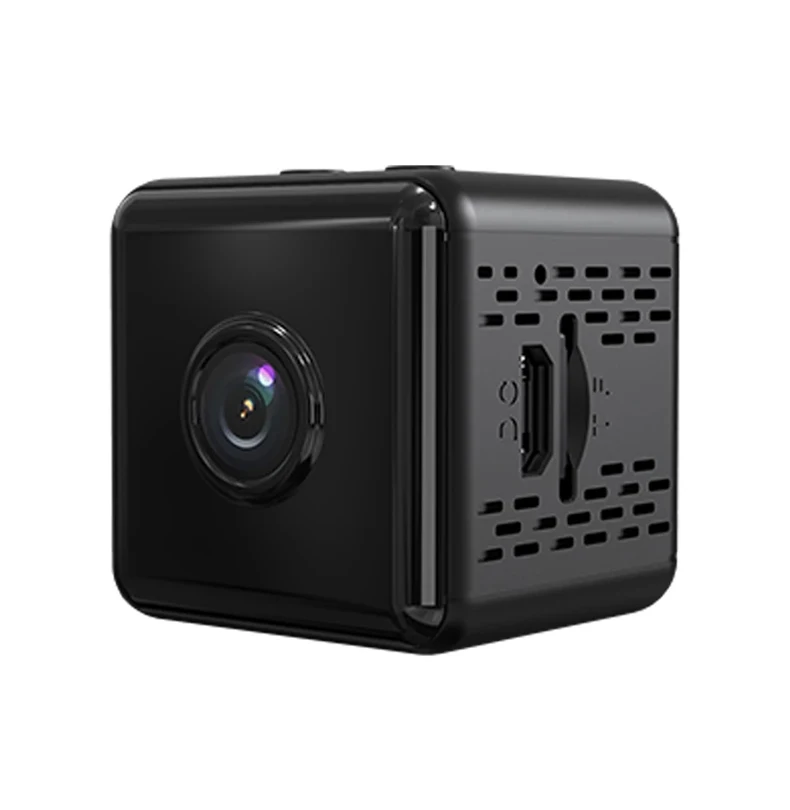

【LM230】 Mini Camera

Description:

APP：HD IOT CAM

Operating system: Lite OS

Number of online users: 10 users are watching online at the same time

Processor: ingenic T21

Image sensor: H62, 1/4-inch 1080p progressive scan CMOS sensor

Minimum illumination: 0.3～0.5Lux (color mode), 0Lux (black and white mode)

Lens: H62 integrated module

Viewing angle: 150° diagonal

Night vision: automatic switching of lens sensitivity, 6 940nm SMD infrared lamps, irradiation distance 3～5 meters

Compression standard: H.264 main Profile/H.264 Baseline Profile/MJPEF/JPEG Baseline

Multi-stream: 1080P@30fps VGA@30fps 360P@4fps JPEG capture

Code rate: CBR/VBR two code rate control modes, and the output code rate range is 128～4096kbps

Image adjustment: brightness, contrast, saturation, and chroma are adjustable

Input: Built-in-38dB microphone

Output: none

Sampling frequency/bit width: 8KHz/16bit

Compression standard/bit rate: ADPCM/32kbps

Network protocol: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, etc.

Wireless network: IEEE802.11b/g/n

Wireless frequency: 2.4~2.4835GHz

Wireless security encryption: 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

Wireless connection: AP hotspot mode

Button 1: Switch machine

Button 2: Reset the machine and record two in one

Reset hole: long press to restore factory settings

Storage function: support T-Flash card, up to 128GB (not including memory card)

Alarm detection: support motion detection

Rated voltage: DC5V±5%

Power supply: comes with 1000mAh battery for power supply

Power consumption: working 230mA

Working environment: working temperature: -10～50℃, working humidity <90%

Weight: Gross weight: TBD (Note: the actual product shall prevail)

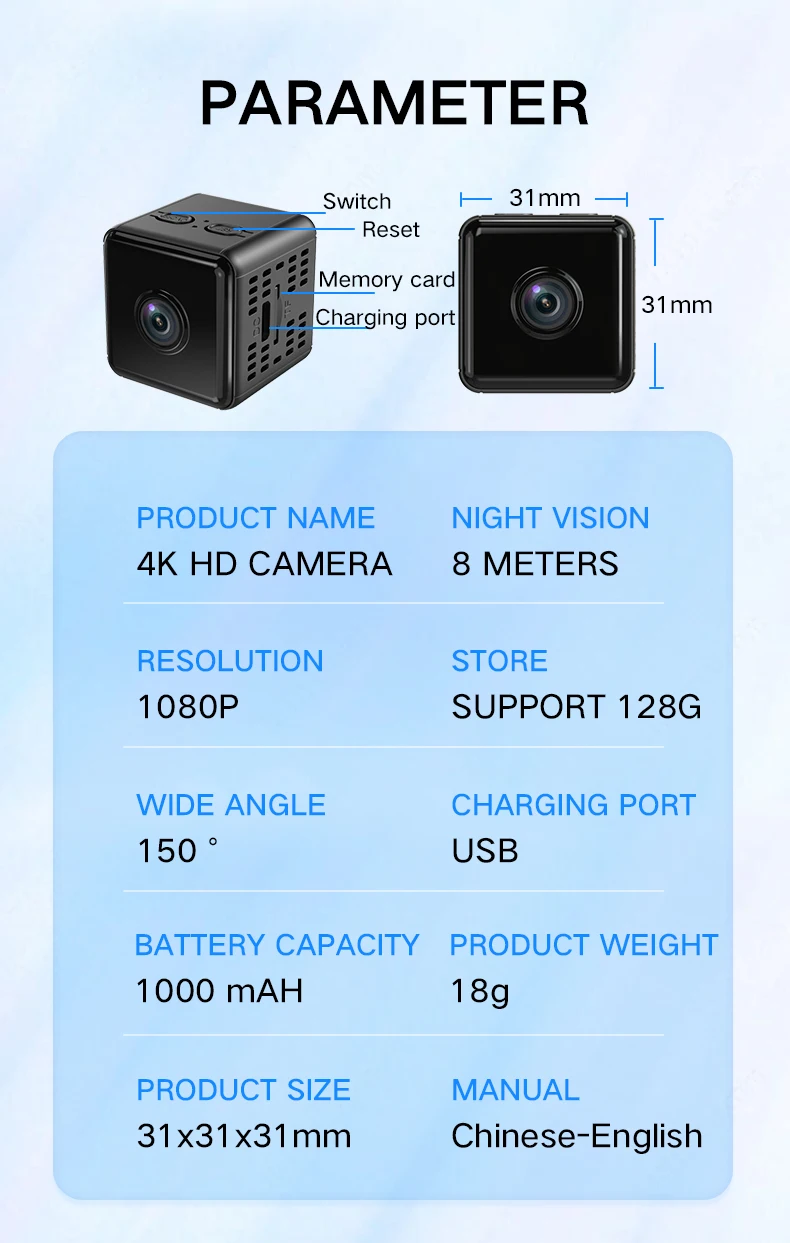

Size: 31 x31x 31mm (length × width × height)

Specifications:

Features:

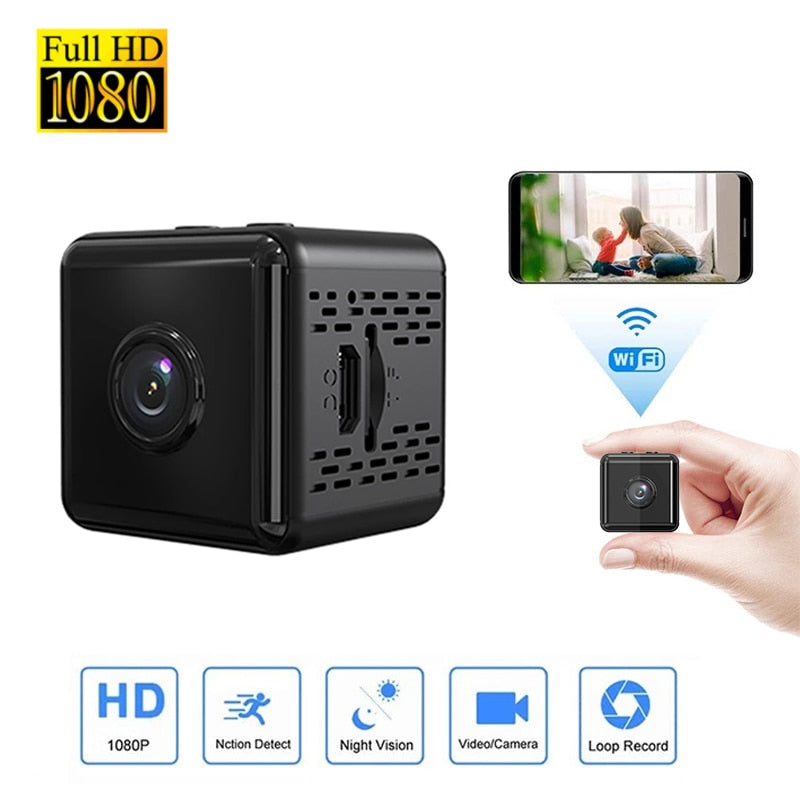

Wireless WiFi 1080P camera, with 6x 940nm infared LEDs up to 3-5 meters distance, 1080P high defination resolution videos, 150° wide angle lens.

Motion detection alarm：When a thief or intruder enters the monitoring range or moves by an object, the system will automatically send an alarm message to your mobile phone, especially suitable for home security or baby care.

1000mAh Large capacity battery ：Can be used about 3 hours continuiously, with long time standby up to 6 months.

Imported high-definition optical glass lens:clear and bright picture, high temperature resistance.

Support TF card, compact in size and lightweight, portable to carry.

Package Included:

1*Video camera

1*charging cable

1*Stand

1*Instruction
