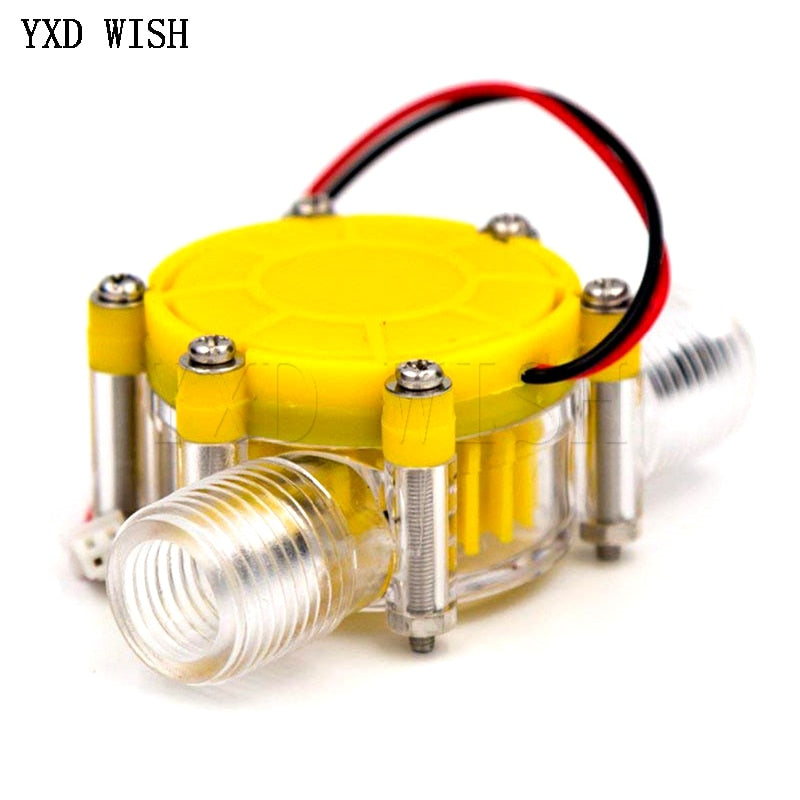

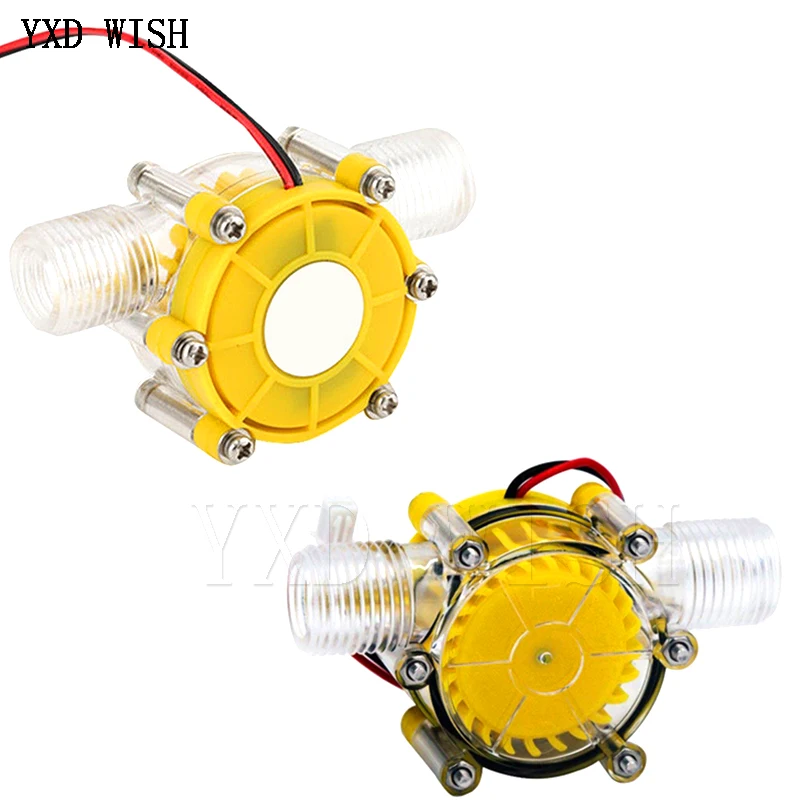

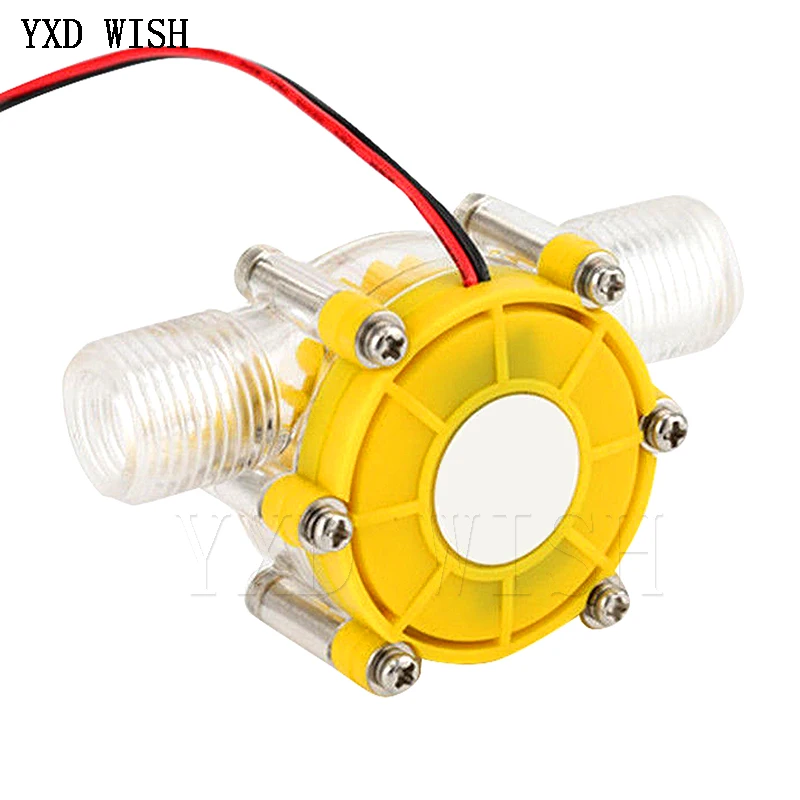

Mini Hydro Generator Turbine 10W DC Water Flow Pump

Hurry up! Only 1 item(s) items left in stock

Description

SPECIFICATIONS

is_customized: Yes

Origin: CN(Origin)

Mounting Base: Without Mounting Base

Model Number: Small Water Pump With DC Motor For energy conversion

Model Number: Generator

DC 5V/12V/80V 10W Water Flow Pump Mini Hydro Generator Turbine Flow Hydraulic Conversion for energy conversion Energy Generators


Specification:

Perfect for energy conversion of the water into electrical energy mechanical equipment

Directly used to charge small battery, mobile phone, or power supply for LED lights, etc

Output current: Max. greater than equal 220mA

Line resistance: 10.5+/-0.5ohm

Insulation resistance: 10Mohm (DC100 megohmmeter)

Closed outlet pressure: Max. 0.6Mpa

Opened outlet pressure: Max. 1.2Mpa

Starting water pressure: 0.05Mpa

Axial clearance: 0.2-1.0mm

Mechanical noise: less than equal 55dB

Output characteristics: output voltage without the voltage regulator circuit is proportional to the water pressure

Installation: standard household 1/2 inch water pipe (Outer diameter:20mm, inner diameter:13mm)

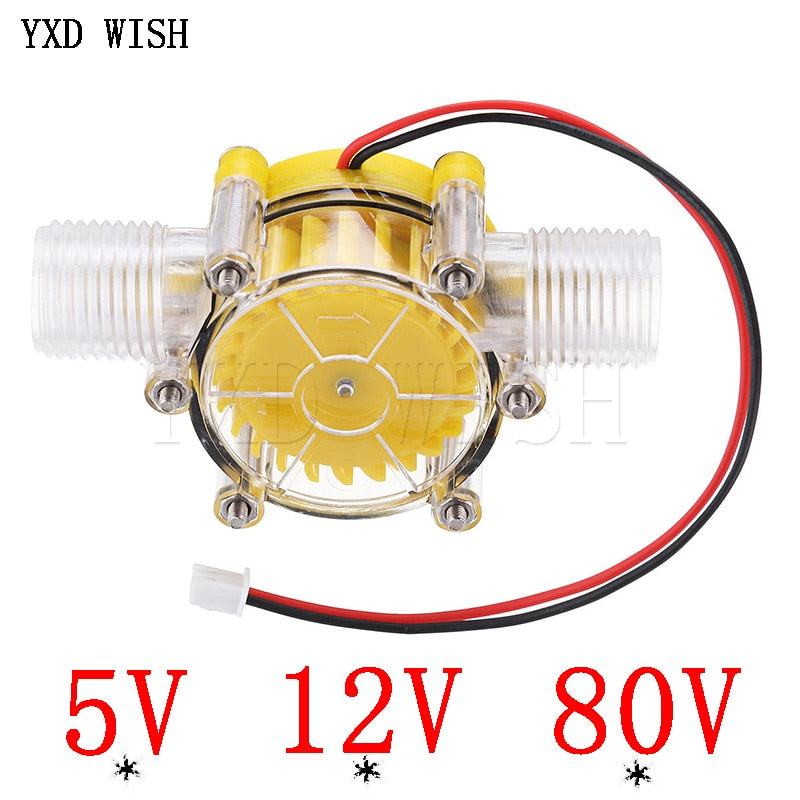

voltage: 5V/12V/80V

colour:Transparent + yellow

Material:plastic


Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
